Clamping Bolts, Nuts and Washers

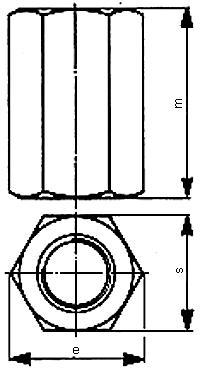

No. 6334
Extenstion nut height 3 dia.

For CAD-files or price information click here or choose from the following:

e-mail to contact@itbona.com
FAX to: +1 (952) 942-6106
Call: +1 (952) 942-6104


Tempered, tensile strength class 10.

Order No
 Thread
s
e
m 3d
Weight (g)
Carton
82651
M6
10
11.5
18
8
100
82669
M8
13
15
24
19
50
82271
M10
16
18.4
30
30
25
82677
M10
*17
19.6
30
42
25
82289
M12
18
20.7
36
48
25
82685
M12
*19
21.9
36
64
25
82297
M14
21
24.2
42
73
25
82693
M14
*22
25.4
42
95
25
82701
M16
24
27.7
48
120
25
82719
M18
27
31.2
54
170
20
82727
M20
30
34.6
60
240
10
82305
M22
34
39.2
66
390
10
82735
M22
*32
36.9
66
280
10
82743
M24
36
41.5
72
400
-
82750
M27
41
47.3
81
600
-
82768
M30
46
53.1
90
850
-
82776
M36
55
63.5
108
1470
-
82784
M42
65
75
126
2340
-
82792
M48
75
86.5
144
3600
-

* Former DIN standard
