Clamping Bolts, Nuts and Washers

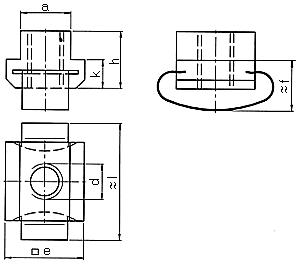

No. 508F
T-nuts with spring
pat. pend

For CAD-files or price information click here or choose from the following:

e-mail to contact@itbona.com
FAX to: +1 (952) 942-6106
Call: +1 (952) 942-6104


Tempered, tensile strength class 10. Spring: stainless steel

Order No
 d x Slot a
a
e
f
h
k
l
Weight (g)
M8x12
11.7
18
12.5
 14
7
31
24
M10x12
11.7
18
12.5
 14
7
31
21
M8x14
13.7
22
13.5
 16
8
33
42
M10x14
13.7
22
13.5
 16
8
33
38
M12x14
13.7
22
13.5
 16
8
33
34
M8x16
15.7
25
15.5
 18
9
42
63
M10x16
15.7
25
15.5
 18
9
42
60
M10x18
17.7
28
17.5
 20
10
43
87
M16x18
17.7
28
17.5
 20
10
43
70
M20x22
21.7
35
21.5
 28
14
56
153
